VERTEX

250cm Roll Width

50m Roll Length

560 GSM

View on trade portal

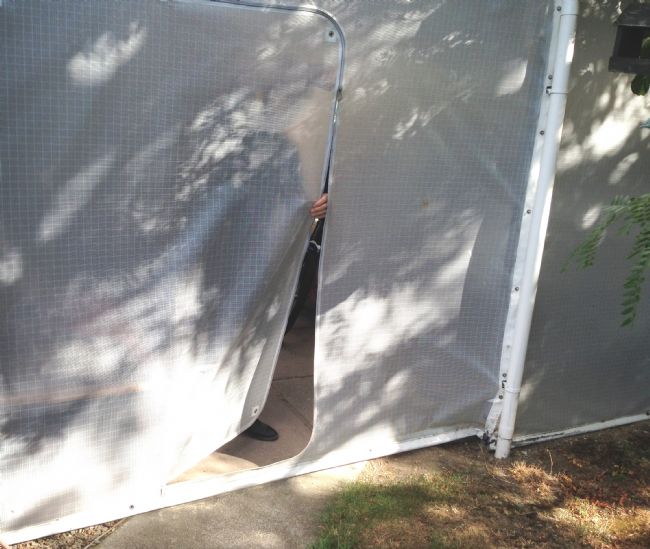

Vertex is a reinforced translucent PVC designed for vertical screening whilst continuing to maximise the amount of light transferring through.

Vertex is a wide 250cm with a ripstop weave pattern for additional tear resistance.

WIDTH: 250cm
ROLL LENGTH: 50m
NOMINAL WEIGHT: 560gsm
BASE FABRIC: Polyester 1100 Decitex
WEAVE: 3.5cm x 3.5cm Ripstop
COATING: Clear PVC paste coated
TEAR STRENGTH: WARP/WEFT 250 / 230 N
TENSILE STRENGTH: WARP/WEFT 1350 / 1350 N/5cm
U/V STABILITY: 3 year minimum
ADHESION: 115 N per 5cm
FLEXING: 400,000 cycles minimum
TEMPERATURE RANGE: -20 / +70 degC
FABRICATION METHODS: Hot Wedge, Hot Air or High Frequency Welding : Sewing : Adhesive

These instructions will maintain the appearance and extend the functional life of the fabric
• PVC Coated Fabrics
• Polypropylene Woven Coated Fabrics
• PVC Coated Nylon/Polyester Fabrics

PVC Coated Nylon/Polyester Fabrics
Care instructions relate to PVC coated side only of fabrics with PVC one

PROHIBITIONS/WARNINGS
• Do not use solvents, abrasives or harsh detergents to clean
• Do not dry clean
• Do not iron

GENERAL CARE INSTRUCTION
A regular wipe over with warm soapy water followed by rinsing with cold water will remove normal soiling. Where a build-up has occurred, the surface should be cleaned with a soft brush and mild, non-abrasive detergent, then rinsed thoroughly.

SPOT CLEANING/SPECIAL TREATMENTS
Mildew may be removed by wiping with a cold solution of household chlorine bleach having 4% chlorine, in the proportion of one part in four to water. Rinse thoroughly with cold water.
