HIRAOKA SUPERSCREEN 401

189cm Roll Width

52m Roll Length

440 GSM

2 Year Minimum Warranty

View on trade portal

Request a sample

Open a Trade Account

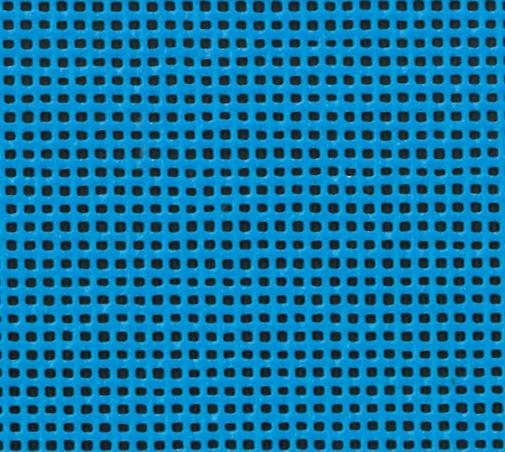

Hiraoka SuperScreen 401 is a high strength PVC coated polyester mesh. It has excellent dimensional stability and very high UV resistance.

SuperScreen meshes are used in a range of applications from tents to sight-screens to truck tarps.

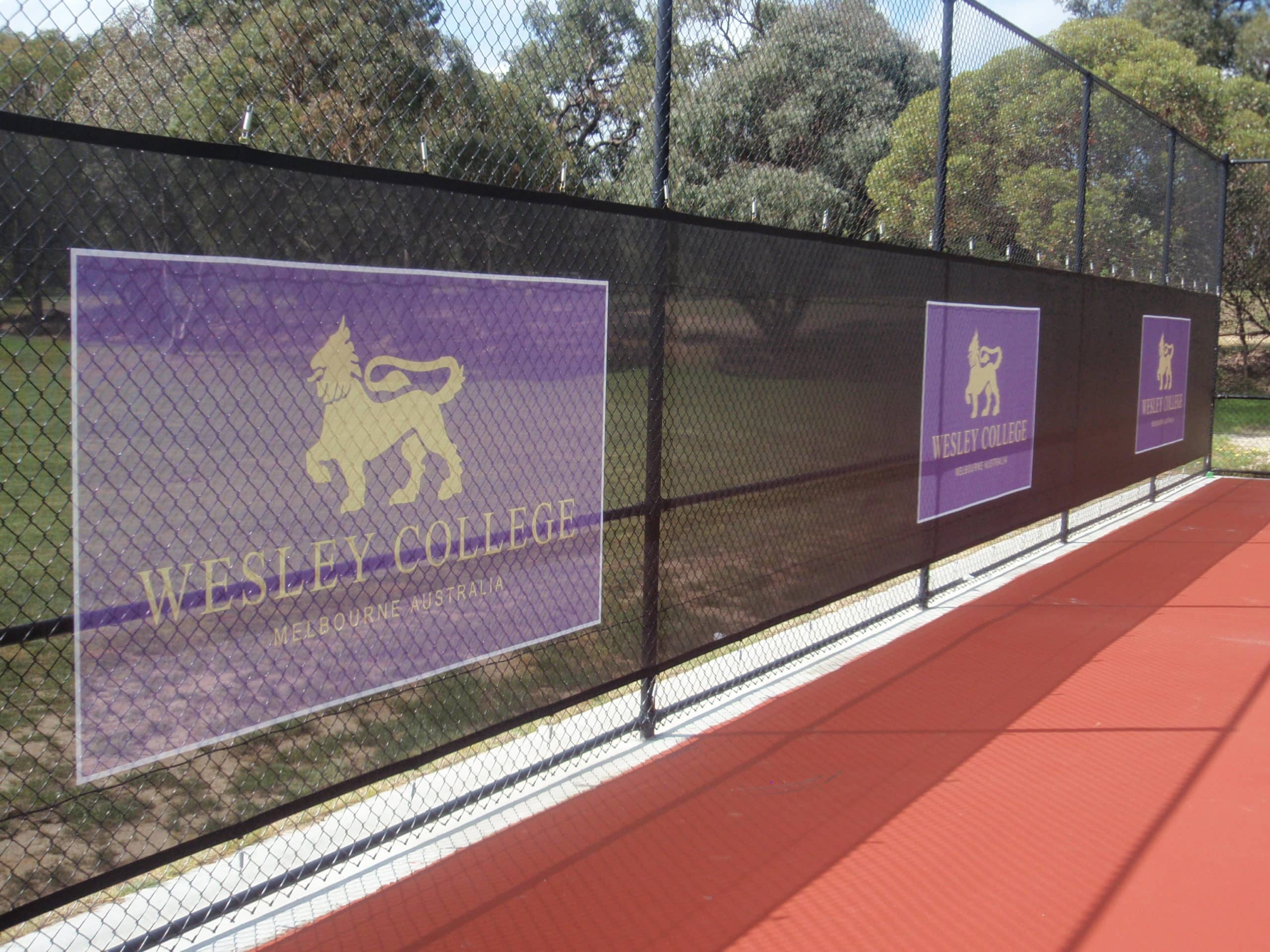

SuperScreen 401 is ideally suited for use in high strength applications such as truck tarps, site screens and wind screen applications.

WIDTH: 189cm
ROLL LENGTH: 52m
NOMINAL WEIGHT: 440gsm
BASE FABRIC: Polyester
COATING: PVC dip coated
SHADE FACTOR: White 62% / Blue 74.4% / Green 71.7% / Grey 74.2% / Black 75.5%
TEAR STRENGTH WARP/WEFT: 751 / 674 N
TENSILE STRENGTH WARP/WEFT: 3430 / 3430 N/5cm
U/V WARRANTY: 2 year minimum
FUNGAL RESISTANCE: Treated
TEMPERATURE RANGE: -30° / +70° C
ELONGATION AT BREAK WARP/WEFT: 27% / 30%
FABRICATION METHODS: Hot Wedge, Hot Air or High Frequency Welding : Sewing

These instructions will maintain the appearance and extend the functional life of the fabric
• PVC Coated Fabrics
• Polypropylene Woven Coated Fabrics
• PVC Coated Nylon/Polyester Fabrics

PVC Coated Nylon/Polyester Fabrics
Care instructions relate to PVC coated side only of fabrics with PVC one

PROHIBITIONS/WARNINGS
• Do not use solvents, abrasives or harsh detergents to clean
• Do not dry clean
• Do not iron

GENERAL CARE INSTRUCTION
A regular wipe over with warm soapy water followed by rinsing with cold water will remove normal soiling. Where a build-up has occurred, the surface should be cleaned with a soft brush and mild, non-abrasive detergent, then rinsed thoroughly.

SPOT CLEANING/SPECIAL TREATMENTS
Mildew may be removed by wiping with a cold solution of household chlorine bleach having 4% chlorine, in the proportion of one part in four to water. Rinse thoroughly with cold water.
