MAXSPAN
366cm Roll Width
50m Roll Length
320 GSM
5 Year Minimum Warranty
MAXSPAN: Super-Strength, Wide-Width PE Coated Fabric.
For large, permanent covers and fixed roof structures, MAXSPAN is engineered to deliver exceptional strength and stability.
This super-strength, wide-width (366cm) PE coated fabric is woven on the advanced Sultzer loom. This precise weaving process ensures ideal yarn uniformity across the entire material, resulting in minimal distortion and optimal adhesion between the coating and the base fabric. This quality means less stress and better performance during fabrication and in the field.

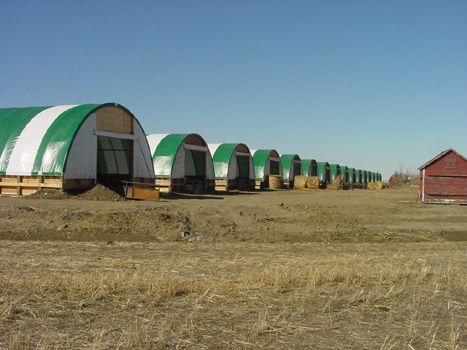

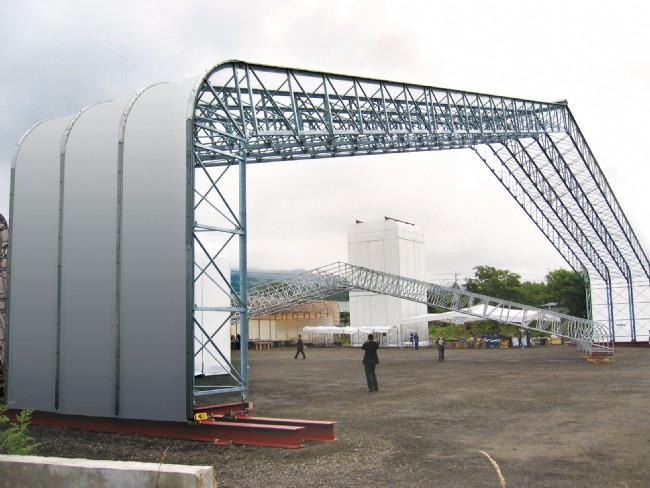

If your project involves Fixed Framed Roof Structures or Stationary Covers where quality and size matter, MAXSPAN provides the reliable, wide-width coverage you need.
Key Specifications:
Strength: Super Strength
Technology: Woven on a Sultzer Loom (for uniformity and minimal distortion)
Coating: High-Grade PE Coated Fabric
Recommended For: Fixed Framed Roof Structures and Stationary Covers
WIDTH: 366cm
ROLL LENGTH: 50m
NOMINAL WEIGHT: 320gsm
BASE FABRIC: Polyethylene 3333 Decitex
COATING: 65 Micron face and back
WEAVE: 16 x 16 /per 2.5cm (Panama Weave Double layer 8 x 8)
TEAR STRENGTH WARP/WEFT: 420 / 410 N/5cm JIS 1096C
TENSILE STRENGTH WARP/WEFT: 2000 / 1900 N JIS 1096A
U/V WARRANTY: 5 year minimum
TEMPERATURE RANGE: -30° / +70°C
FABRICATION METHODS: Hot Wedge & Hot Air Welding : Sewing
These instructions will maintain the appearance and extend the functional life of the fabric
• PVC Coated Fabrics
• Polypropylene Woven Coated Fabrics
• PVC Coated Nylon/Polyester Fabrics
PVC Coated Nylon/Polyester Fabrics
Care instructions relate to PVC coated side only of fabrics with PVC one
PROHIBITIONS/WARNINGS
• Do not use solvents, abrasives or harsh detergents to clean
• Do not dry clean
• Do not iron
GENERAL CARE INSTRUCTION
A regular wipe over with warm soapy water followed by rinsing with
cold water will remove normal soiling. Where a build-up has occurred,
the surface should be cleaned with a soft brush and mild, non abrasive
detergent, then rinsed thoroughly.
SPOT CLEANING/SPECIAL TREATMENTS
Mildew may be removed by wiping with a cold solution of household
chlorine bleach having 4% chlorine, in the proportion of one part in
four to water. Rinse thoroughly with cold water.
The customer must inspect the goods upon delivery and report any defects, shortages, damage, or mismatches within 10 days. The company must be given a reasonable chance to inspect any allegedly defective goods. If no notice is given within the timeframe, the goods are considered accepted and free from defects. If the company agrees the goods are defective, it may choose to repair or replace them.
Returns are only accepted if the company approves them in writing, the goods are returned within 7 days at the customer’s expense, and the goods are unused, properly stored, and returned in near-new condition with original packaging and materials.
The company will not accept returns for customised goods, cut textile products, altered or tampered goods, indent goods, or goods that were improperly stored or handled by the customer.
The company may charge a handling fee of 20% of the returned goods’ value (or $100 minimum) and/or return freight costs if the return is due to the customer’s fault or omission.
Downloadable Guides
Technical Specifications
Colour Chart
Care Instructions
