CLEARFOL 650 U/V HT LOW SHRINK
137cm Roll Width
30m Roll Length
813 GSM
3 Year minimum Warranty
View on trade portal
Clearfol 650 U/V HT Low Shrink: High-Performance Clear PVC.
We get it, In demanding applications like marine environments, high-end outdoor glazing, and textile architecture, “clear” isn’t enough. You need exceptional clarity, superior UV resistance, and guaranteed dimensional stability to avoid frustrating shrinkage and premature failure. Uncertainty about material longevity risks your reputation.
The W Wiggins Solution: Stability Meets Superior Clarity
Choose Clearfol 650 U/V HT Low Shrink, the premium flexible clear PVC specifically engineered for demanding New Zealand conditions. Sourced from a trusted European brand, this material guarantees long-lasting visibility and exceptional durability where transparency and UV protection are essential. It’s the expert choice for delivering a flawless, long-term result.
Key Performance Benefits
Exceptional Clarity & Transparency – Provides the absolute best visibility, ideal for applications where an uninterrupted view is critical (like marine glazing or café blinds).
Superior UV Resistance – UPF 50+ protection and an outstanding 3-year minimum warranty against UV damage (1000hrs). This means less yellowing, cracking, and a longer life.
Stabilised Low Shrink PVC – Engineered with less than 1% shrinkage to maintain its shape and tension over time—no more wavy, misshapen panels after installation.
Maximum Versatility – Can be easily sewn or welded using High-Frequency, Hot Air, or Impulse methods, providing total flexibility for your fabrication process.
Durable & Long-Lasting – Robust 0.65mm thickness and high tensile strength (up to 230 kg/cm²) ensure longevity in harsh outdoor environments.
Key Applications
Café and Outdoor Blinds: Achieve a crystal-clear, weather-tight barrier.

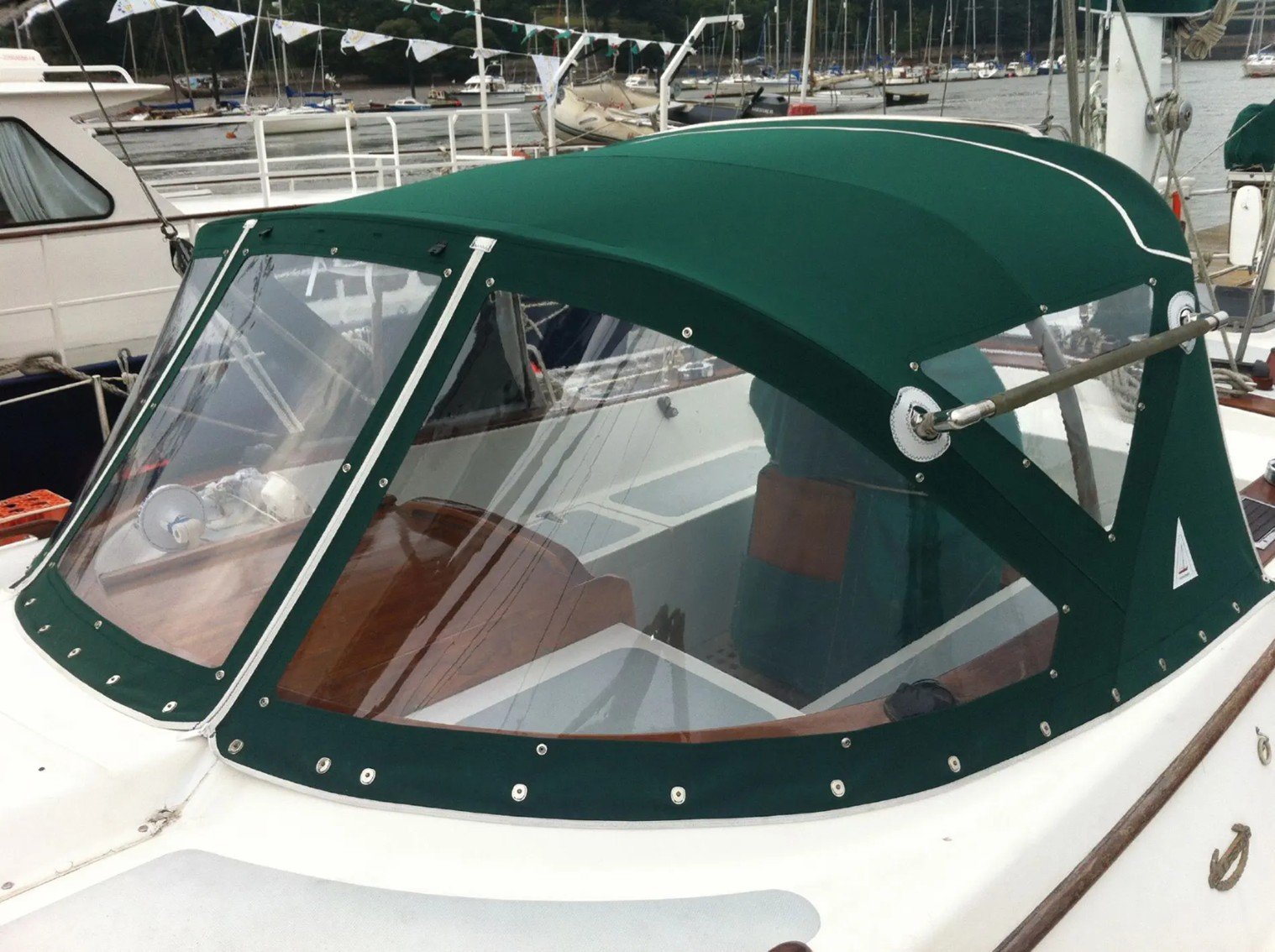

Marine Glazing & Automotive Panels: Trusted performance in high-exposure environments

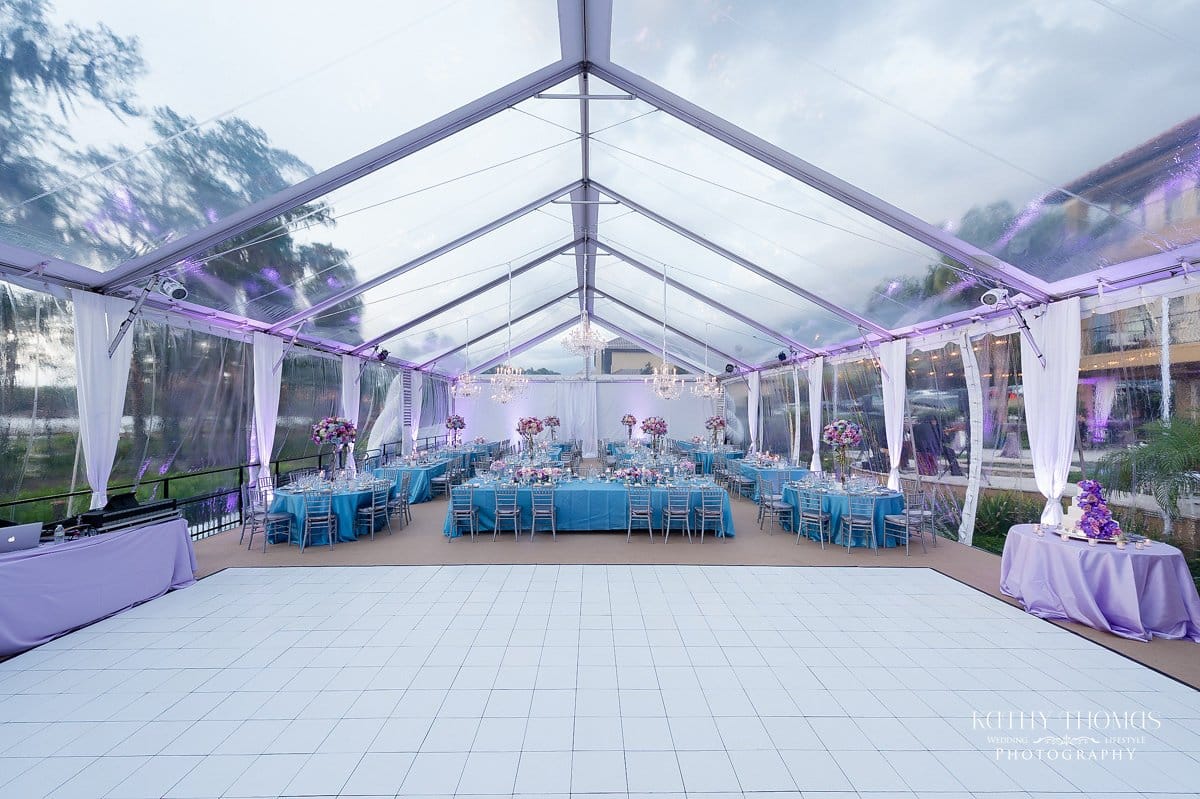

Textile Architecture & Canopies: Reliable protection without compromising light or design

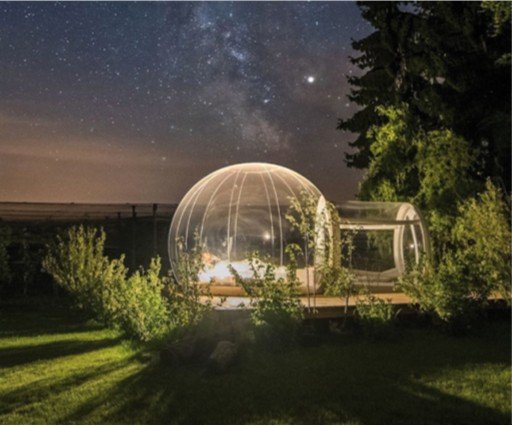

Awnings and Tents: Durable, long-lasting clear sections.
WIDTH: 137cm
ROLL LENGTH: 30m
NOMINAL WEIGHT: 813gsm
THICKNESS: 0.65mm
TENSILE STRENGTH WARP/WEFT: 230kg/cm2 / 220kg/cm2
SHRINKAGE: 5
U/V WARRANTY: 3 year minimum (1000hrs)
TEMPERATURE RANGE: -10° / +70° C
FABRICATION METHODS: Hot Wedge, Hot Air or High Frequency Welding : Sewing : Adhesive
These instructions will maintain the appearance and extend the functional life of the fabric
• PVC Coated Fabrics
• Polypropylene Woven Coated Fabrics
• PVC Coated Nylon/Polyester Fabrics
PVC Coated Nylon/Polyester Fabrics
Care instructions relate to PVC coated side only of fabrics with PVC one
PROHIBITIONS/WARNINGS
• Do not use solvents, abrasives or harsh detergents to clean
• Do not dry clean
• Do not iron
GENERAL CARE INSTRUCTION
A regular wipe over with warm soapy water followed by rinsing with
cold water will remove normal soiling. Where a build-up has occurred,
the surface should be cleaned with a soft brush and mild, non-abrasive
detergent, then rinsed thoroughly.
SPOT CLEANING/SPECIAL TREATMENTS
Mildew may be removed by wiping with a cold solution of household
chlorine bleach having 4% chlorine, in the proportion of one part in
four to water. Rinse thoroughly with cold water.
The customer must inspect the goods upon delivery and report any defects, shortages, damage, or mismatches within 10 days. The company must be given a reasonable chance to inspect any allegedly defective goods. If no notice is given within the timeframe, the goods are considered accepted and free from defects. If the company agrees the goods are defective, it may choose to repair or replace them.
Returns are only accepted if the company approves them in writing, the goods are returned within 7 days at the customer’s expense, and the goods are unused, properly stored, and returned in near-new condition with original packaging and materials.
The company will not accept returns for customised goods, cut textile products, altered or tampered goods, indent goods, or goods that were improperly stored or handled by the customer.
The company may charge a handling fee of 20% of the returned goods’ value (or $100 minimum) and/or return freight costs if the return is due to the customer’s fault or omission.
Downloadable Guides
Technical Specifications
Care Instructions
