SOLARIS 14% MESH

300cm Roll Width

30m Roll Length

390 GSM

8 Year Warranty

View on trade portal

Request a sample

Open a Trade Account

Solaris 14% Mesh fabric is woven from high-strength polyester fiber and then coated with a complete high-performance composite material. The overall surface of the fabric is completely protected at one time, and the surface is smooth and flat. Compared with regular sunscreen fabric on the market, with the same tensile strength, the weight is reduced by 30%.

Compared with the existing sunscreen fabrics in the market, the tensile force is increased by 102%. The proportion of ultra-low shrinkage and ultra-high strength industrial silk is 35% – 40%, and the tensile strength is increased by 102% compared with the same weight of regular sunscreen fabric.

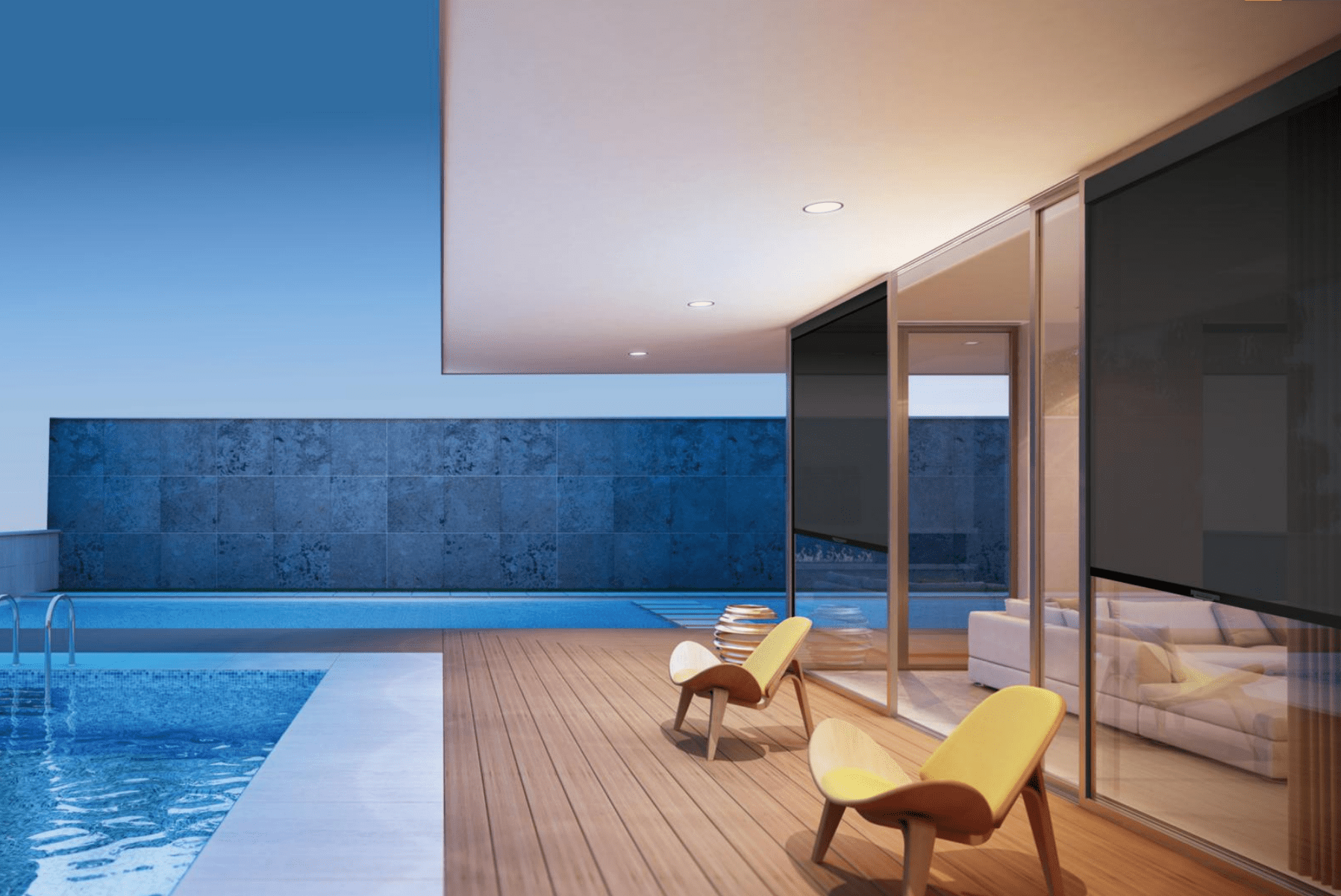

SOLARIS 14% Mesh has a 14% openness making it a great choice for Overhead Shade and Outdoor Screens.

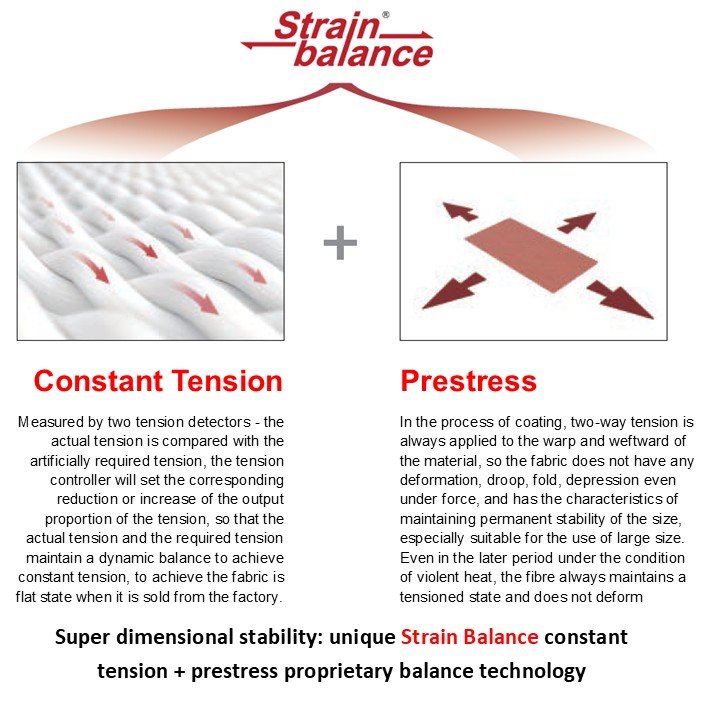

Super dimensional stability.
Unique STRAIN BALANCE constant tension + prestress proprietary balance technology.

Five prevention function.
Water resistance: The high-performance composite material coating is applied on the high-strength polyester fiber as a whole, which is waterproof and will not absorb water, and there is no possibility of mildew and bacteria breeding.
Fire resistance: NZ Standard AS/NZS1530.2, German standard B1, GB/T17591, American standard NFPA701, European standard EN 13773, EN13501, Canadian fire protection and other certificates are complete, meeting fire safety requirements.
High colour fastness: Pass the ISO 105-B04 artificial weather color fastness test to ensure that the fabric will not fade for 8-10 years.
Mildew proof: European standard all-weather color fastness, no fading. The full range of products passed ASTM G21, grade 0 mildew resistance 28 days no growth test.
Free of formaldehyde: Listed companies purchase PVC, additives and other raw materials that are healthy and environmentally friendly, and do not contain formaldehyde.

Super strong edge sealing ability.

Environmental friendly.

Aging resistance + extreme temperature resistance.
Thanks to the excellent surface coating process, SOLARIS fabrics are more suitable for extreme outdoor environments.

Corrosion resistance.
The excellent surface treatment process of SOLARIS fabrics provide strong corrosion resistance, can resist acid and alkali erosion, and is not affected by air pollution, acid rain and ozone.

Anti fouling + self cleaning.
SOLARIS fabrics are coated with a complete high-performance composite material (anti dust, anti ultraviolet, anti-aging, anti-static, etc.) on the woven material. The overall surface is protected, smooth and flat, not easily affected by external factors, and has a strong anti pollution effect.
The imported surface treatment agent effectively prevents the precipitation of plasticizer, the fabric surface is flat and smooth, and the self-cleaning is 30% higher than the ordinary outdoor fabric on the market.

Width: 300cm
Thickness: 0.50mm
Total Weight: 390gsm
Roll Length: 30m
Tensile Strength: warp 2700N/SCM weft 1800N/SCM
Tear Strength: warp 450N/SCM weft 200N/SCM
Flame Retardancy: AS1530.2 DIN4102 NFPA 701 NFPA 701:2015 B1 GB/T17591 B-S1,d0 EN13501-1
Surface Treatment: Acrylic
Colour Fastness: 8
U/V Warranty: 8 Years

These instructions will maintain the appearance and extend the functional life of the fabric
• PVC Coated Fabrics
• Polypropylene Woven Coated Fabrics
• PVC Coated Nylon/Polyester Fabrics

PVC Coated Nylon/Polyester Fabrics
Care instructions relate to PVC coated side only of fabrics with PVC one

PROHIBITIONS/WARNINGS
• Do not use solvents, abrasives or harsh detergents to clean
• Do not dry clean
• Do not iron

GENERAL CARE INSTRUCTION
A regular wipe over with warm soapy water followed by rinsing with
cold water will remove normal soiling. Where a build-up has occurred,
the surface should be cleaned with a soft brush and mild, non abrasive
detergent, then rinsed thoroughly.

SPOT CLEANING/SPECIAL TREATMENTS
Mildew may be removed by wiping with a cold solution of household
chlorine bleach having 4% chlorine, in the proportion of one part in
four to water. Rinse thoroughly with cold water.
