SIOEN E1510 PVC-ELVALLOY GEOMEMBRANE
250cm Roll Width
50m Roll Length
1000 GSM
10 Year Warranty
View on trade portal
Sioen E1510 Geomembrane is classified as a PVC-Ethylene interpolymer alloy designed for containment and protection against acids, oils, methane and alkalis.
Sioen E1510 has superior chemical resistance, excellent stability with low thermal expansion and contraction, high strength and excellent U/V resistance.

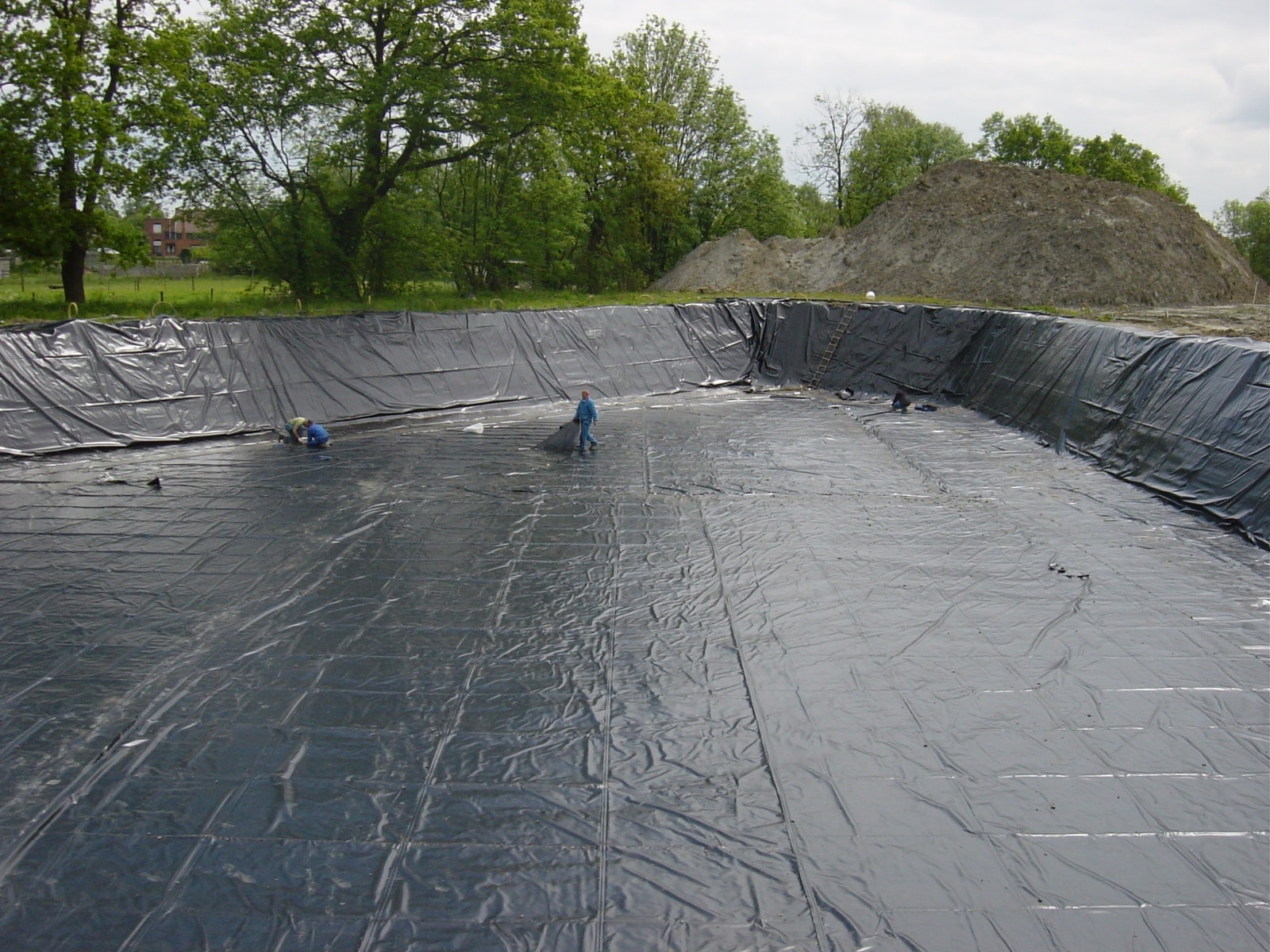

Sioen E1510 is specially engineered to be used in the harshest conditions for Wastewater treatment and containment, Tank Barriers for containment, liner for Leachate Ponds, Spill Containment, Floating Covers and Oil Booms.
Available in BLACK only
WIDTH: 250cm
ROLL LENGTH: 50m
NOMINAL WEIGHT: 1000gsm
BASE FABRIC: Polyester 1100 Decitex
COATING: PVC – Elvalloy
SURFACE FINISH: Lacquer
THICKNESS: 0.9mm
TEAR STRENGTH WARP/WEFT: 500 / 400 N
TENSILE STRENGTH WARP/WEFT: 3500 / 3500 N/5cm
BONDED SEAM STRENGTH WARP/WEFT: 3000 / 3000 N
ABRASION (Cycles before fabric exposure): 2000 cycles
PUNCTURE RESISTANCE: 1150 N
BURSTING STRENGTH (Ball tip): 2950 N
DIMENSIONAL STABILITY WARP/WEFT: < 1% / 540 N/cm2 / >8000 psi
WATER ABSORBTION (7 days / 21° C): <0.07 kg/m2
COEFFICIENT OF THERMAL EXPANSION/CONTRACTION: <1.8 x 10-5 cm/cm °C
FABRICATION METHODS: Hot Wedge, Hot Air or High Frequency Welding
These instructions will maintain the appearance and extend the functional life of the fabric.
• PVC Coated Fabrics
• Polypropylene Woven Coated Fabrics
• PVC Coated Nylon/Polyester Fabrics
PVC Coated Nylon/Polyester Fabrics
Care instructions relate to PVC coated side only of fabrics with PVC one.
PROHIBITIONS/WARNINGS
• Do not use solvents, abrasives or harsh detergents to clean
• Do not dry clean
• Do not iron
GENERAL CARE INSTRUCTION
A regular wipe over with warm soapy water followed by rinsing with
cold water will remove normal soiling. Where a build-up has occurred,
the surface should be cleaned with a soft brush and mild, non abrasive
detergent, then rinsed thoroughly.
SPOT CLEANING/SPECIAL TREATMENTS
Mildew may be removed by wiping with a cold solution of household
chlorine bleach having 4% chlorine, in the proportion of one part in
four to water. Rinse thoroughly with cold water.
The customer must inspect the goods upon delivery and report any defects, shortages, damage, or mismatches within 10 days. The company must be given a reasonable chance to inspect any allegedly defective goods. If no notice is given within the timeframe, the goods are considered accepted and free from defects. If the company agrees the goods are defective, it may choose to repair or replace them.
Returns are only accepted if the company approves them in writing, the goods are returned within 7 days at the customer’s expense, and the goods are unused, properly stored, and returned in near-new condition with original packaging and materials.
The company will not accept returns for customised goods, cut textile products, altered or tampered goods, indent goods, or goods that were improperly stored or handled by the customer.
The company may charge a handling fee of 20% of the returned goods’ value (or $100 minimum) and/or return freight costs if the return is due to the customer’s fault or omission.
Downloadable Guides
Technical Specifications
Care Instructions
