INSULTEX FOAM INSULATED PVC

250cm Roll Width

50m Roll Length

1320 GSM

3 Year Warranty

View on trade portal

Request a sample

Open a Trade Account

INSULTEX – Foam Insulated PVC Textile.

Insultex is a premium foam-insulated PVC textile engineered for superior thermal and acoustic performance. Its durable construction and layered insulation make it ideal for commercial applications requiring enhanced energy efficiency, sound dampening, and temperature control.

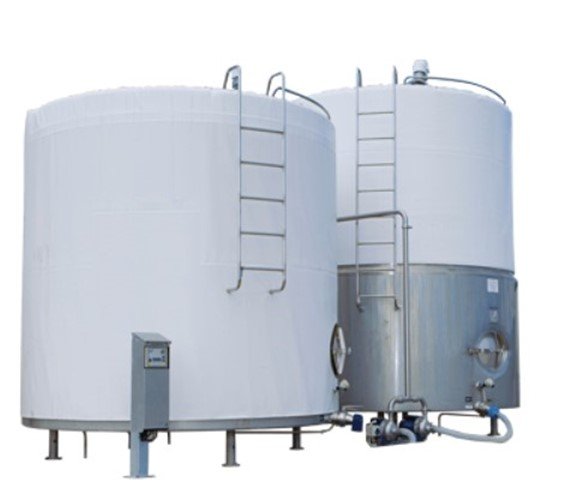

The fabric features a UV-stabilized and anti-bacterial coating, ensuring longevity and hygiene for indoor or semi-exposed environments. Its versatility makes it perfect for applications such as insulated vat wraps, acoustic panels, protective covers, and thermal insulation projects.

Key Features:

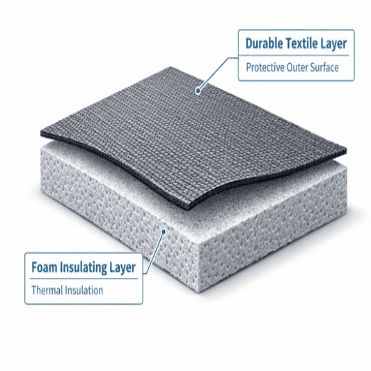

Foam-Insulated PVC Textile: Provides both thermal and acoustic insulation
Durable & Heavy-Duty: Nominal weight 1320gsm, thickness 3.5mm
UV Stabilized & Anti-Bacterial: Suitable for commercial and high-use environments
Fire Retardant: Certified to AS/NZS 1530.2, B2 rating
Acoustic Performance: Weighted Sound Reduction Index (Rw + C) = 18dB
Thermal Efficiency: Thermal conductivity 0.041 W/m-K
Protective Surface Finish: Acrylic coating on both sides for extra durability.

WIDTH: 250cm
ROLL LENGTH: 50m
NOMINAL WEIGHT: 1320gsm
THICKNESS: 3.5mm
BASE FABRIC: Polyester 1100 Decitex
WEAVE: 9 x 9 per/cm
COATING: PVC BLADE/KNIFE COATED
SURFACE FINISH: Acrylic protective finish both sides.
TEAR STRENGTH: WARP/WEFT 350 / 300 N
TENSILE STRENGTH: WARP/WEFT 3000 / 2800 N/5cm
ADHESION: 100 N/5cm
U/V WARRANTY: 3 year
FIRE RETARDANT: AS/NZS 1530.2 , B2
ACOUSTIC CERTIFICATION: RW + C = 18dB (Weighted Sound Reduction Index)
THERMAL CONDUCTIVITY: 0.041 W/m-K
TEMPERATURE RANGE: -30° / +70° C
FABRICATION METHODS: High Frequency Welding : Sewing

These instructions will maintain the appearance and extend the functional life of the fabric
• PVC Coated Fabrics
• Polypropylene Woven Coated Fabrics
• PVC Coated Nylon/Polyester Fabrics

PVC Coated Nylon/Polyester Fabrics
Care instructions relate to PVC coated side only of fabrics with PVC one

PROHIBITIONS/WARNINGS
• Do not use solvents, abrasives or harsh detergents to clean
• Do not dry clean
• Do not iron

GENERAL CARE INSTRUCTION
A regular wipe over with warm soapy water followed by rinsing with cold water will remove normal soiling. Where a build-up has occurred, the surface should be cleaned with a soft brush and mild, non-abrasive detergent, then rinsed thoroughly.

SPOT CLEANING/SPECIAL TREATMENTS
Mildew may be removed by wiping with a cold solution of household chlorine bleach having 4% chlorine, in the proportion of one part in four to water. Rinse thoroughly with cold water.
